Home ► Products ► Pipe fittings ► SAE J514 stainless ► Adjustable branch tee with swivel nut thread UNF/UN - 2B standard body | stainless

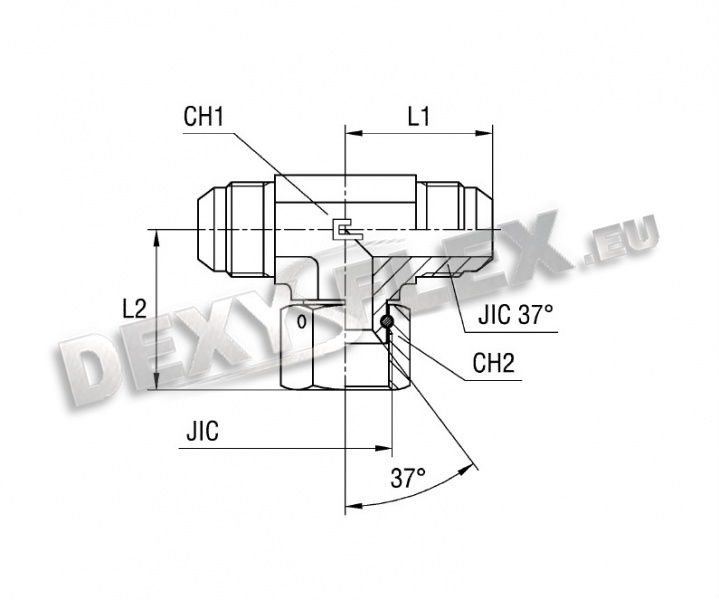

Adjustable branch tee with swivel nut thread UNF/UN - 2B standard body | stainless
Adjustable branch tee with swivel nut thread UNF/UN - 2B standard body | stainless
| Article No. | Price (pcs.) | Quantity (pcs.) | Seria | Bar | DN mm | Ø inch | JIC 37° | L1 | L2 | CH1 | CH2 |
| ********** | - | - | Universal | 450 | 6 | 1/4 | 7/16-20 | 23 | 26,5 | 11 | 14 |
| ********** | - | - | Universal | 450 | 8 | 5/16 | 1/2-20 | 24 | 27 | 14 | 17 |
| ********** | - | - | Universal | 350 | 10 | 3/8 | 9/16-18 | 27,5 | 31,3 | 14 | 19 |
| ********** | - | - | Universal | 350 | 12 | 1/2 | 3/4-16 | 32 | 35,6 | 19 | 22 |
| ********** | - | - | Universal | 350 | 14-15-16 | 5/8 | 7/8-14 | 37 | 41,6 | 22 | 27 |
| ********** | - | - | Universal | 350 | 18-20 | 3/4 | 11/16-12 | 42 | 44,2 | 27 | 32 |
| ********** | - | - | Universal | 290 | 25 | 1 | 15/16-12 | 46 | 51,4 | 33 | 41 |
| ********** | - | - | Universal | 240 | 30-32 | 11/4 | 15/8-12 | 53 | 58,8 | 41 | 50 |
| ********** | - | - | Universal | 240 | 38 | 11/2 | 17/8-12 | 59 | 66,3 | 48 | 60 |
