DexyFlex®

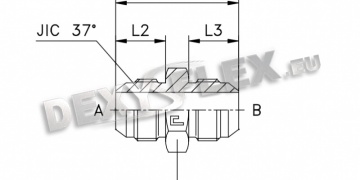

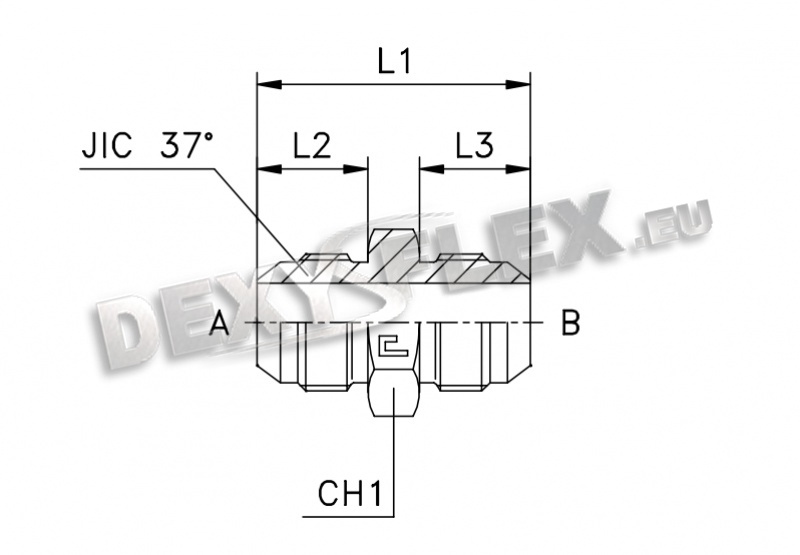

straight coupling SAE J514
straight coupling SAE J514
| Article No. | Price (pcs.) | Quantity (pcs.) | Ø А mm | Ø B mm | Ø А inch | Ø B inch | Working pressure bar | L1 | L2 | L3 | CH1 | JIC 37°A | JIC 37°B |
| ********** | - | - | 6 | 6 | 1/4 | 1/4 | 450 | 35 | 14 | 14 | 12 | 7/16-20 | 7/16-20 |
| ********** | - | - | 8 | 8 | 5/16 | 5/16 | 450 | 35 | 14 | 14 | 14 | 1/2-20 | 1/2-20 |
| ********** | - | - | 10 | 10 | 3/8 | 3/8 | 350 | 36 | 14,1 | 14,1 | 17 | 9/16-18 | 9/16-18 |
| 3120240430 | 4,01 € |  | 12 | 12 | 1/2 | 1/2 | 350 | 41 | 16,7 | 16,7 | 22 | 3/4-16 | 3/4-16 |
| ********** | - | - | 14-15-16 | 14-15-16 | 5/8 | 5/8 | 350 | 48 | 19,3 | 19,3 | 24 | 7/8-14 | 7/8-14 |
| ********** | - | - | 18-20 | 18-20 | 3/4 | 3/4 | 350 | 55 | 21,9 | 21,9 | 30 | 11/16-12 | 11/16-12 |
| ********** | - | - | 25 | 25 | 1 | 1 | 290 | 57 | 23,1 | 23,1 | 36 | 15/16-12 | 15/16-12 |
| ********** | - | - | 30-32 | 30-32 | 11/4 | 11/4 | 240 | 61,5 | 24,3 | 24,3 | 46 | 15/8-12 | 15/8-12 |
| ********** | - | - | 38 | 38 | 11/2 | 11/2 | 240 | 70 | 27,5 | 27,5 | 50 | 17/8-12 | 17/8-12 |
| ********** | - | - | 10 | 6 | 3/8 | 1/4 | 350 | 36 | 14,1 | 14 | 17 | 9/16-18 | 7/16-20 |
| ********** | - | - | 12 | 10 | 1/2 | 3/8 | 350 | 38,5 | 16,7 | 14,1 | 22 | 3/4-16 | 9/16-18 |
| ********** | - | - | 14-15-16 | 12 | 5/8 | 1/2 | 350 | 45,5 | 19,3 | 16,7 | 24 | 7/8-14 | 3/4-16 |
| ********** | - | - | 18-20 | 12 | 3/4 | 1/2 | 350 | 50 | 21,9 | 16,7 | 30 | 11/16-12 | 3/4-16 |
| ********** | - | - | 18-20 | 14-15-16 | 3/4 | 5/8 | 350 | 52,5 | 21,9 | 19,3 | 30 | 11/16-12 | 7/8-14 |
| ********** | - | - | 25 | 18-20 | 1 | 3/4 | 290 | 56 | 23,1 | 21,9 | 36 | 15/16-12 | 11/16-12 |
